Quick Details

  • Place of Origin: Zhejiang, China (Mainland)
  • Brand Name: CNGAD
  • Model Number: D-50
  • Output Power: 50W
  • Output Type: Single
  • Input Voltage: 110/220VA C
  • Output Voltage: 5V
  • Output Frequency: 50/60Hz
  • Output Current: 6A
  • AC input voltage range: Cold-start current 18 A/115V 36A/230V
  • OverLoad protection: 105%~150% hiccup mode,auto-recovery
  • Setup,rise,hold up time: 200ms 100ms 30ms
  • Working temperature: -10℃~+50℃
  • Safety standards: Design refer to GB4943,UL60950,EN60950
  • EMC standards: Design refer to GB9254,EN55022 class A
  • Weight: 0.52kg
  • Product Name: Switching power supply

Packaging & Delivery

Packaging Details standard exporting packaging for CNGND 25W Power Supply Switch 5V 5A(5V switch power supply, power supply switch(S-25-5)
Delivery Time 2-4 weeks for CNGND 25W Power Supply Switch 5V 5A
Product Description

1. The products we export is of good quality and competitive price.
2. We provide professional OEM service.
3. Payment term by T/T, L/C, paypal and western union is all acceptable for us.
4. Certificate of origin, Embassy certification and any problems you meet in importing our products we will actively cooperate with you to solve it.

Summary

Single unit output:powers 50W
Input voltage AC 110/220VAC±20% . Selected by swich
When the orders 380VAC input
Output voltage:The voltage we all can produce between3V-48VDC

Model

Specification

D-50AD-50B
CH1CH2CH1CH2

Specification

5V 6A12V 2A5V 6A24V 1A

Wave and noise

50mVp-p100mVp-p50mVp-p100mVp-p

Inlet stability

±0.5%±1%±0.5%±1%

Load stability

±0.5%±5%±0.5%±8%

Efficiency

73%73%

Adjustable range for DC voltage

CH1:+10,-5%CH1:+10,-5%

AC input voltage range

85~132VAC/170~264VAC Selected by switch 47~63Hz,240~370VDC

AC input voltage range

Cold-start current 18 A/115V 36A/230V

OverLoad protection

105%~150% hiccup mode,auto-recovery

OverLoad protection

……………….

Setup,rise,hold up time

200ms? 100ms? 30ms

Withstand voltage

I/P-O/P:1.5KvAC I/P-FG:1.5KvAC O/P-FG:0.5Kv 1minute

Isolation resistance

I/P-O/P, I/P-FG, O/P-FG:500VDC/100MΩ

Working temperature

-10℃~+50℃

Safety standards

Design refer to GB4943,UL60950,EN60950

EMC standards

Design refer to GB9254,EN55022 class A

Weight

0.52kg

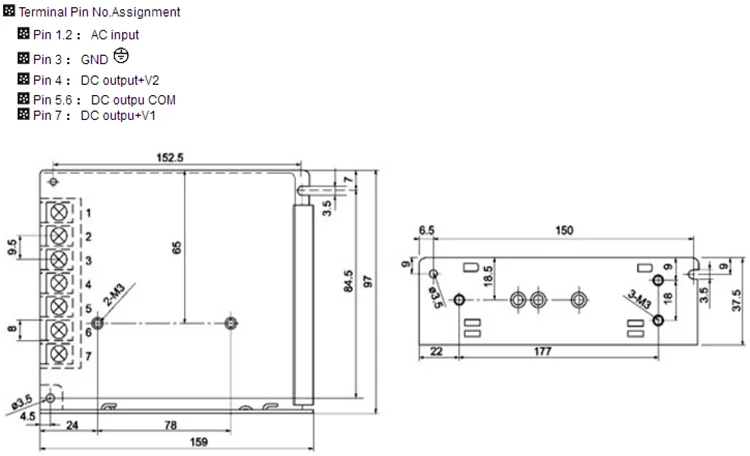

Overall dimension(mm)
