Quick Details

  • Place of Origin: Zhejiang, China (Mainland)
  • Brand Name: CNGAD
  • Model Number: KTS011
  • Usage: Indoor
  • Theory: Temperature Controller
  • Accuracy: 0.1
  • Temperature range: 10~50

Packaging & Delivery

Packaging Details standard package for KTS011 CNGAD mechanical thermostat temperature controller
Delivery Time 2-4 weeks for CNGAD mechanical thermostat temperature controller
Product Description

What can we do for you?

1. The products we export is of good quality and competitive price.
2. We provide professional OEM service.
3. Payment term by T/T, L/C, paypal and western union is all acceptable for us.
4. Certificate of origin, Embassy certification and any problems you meet in importing our products we will actively cooperate with you to solve it.

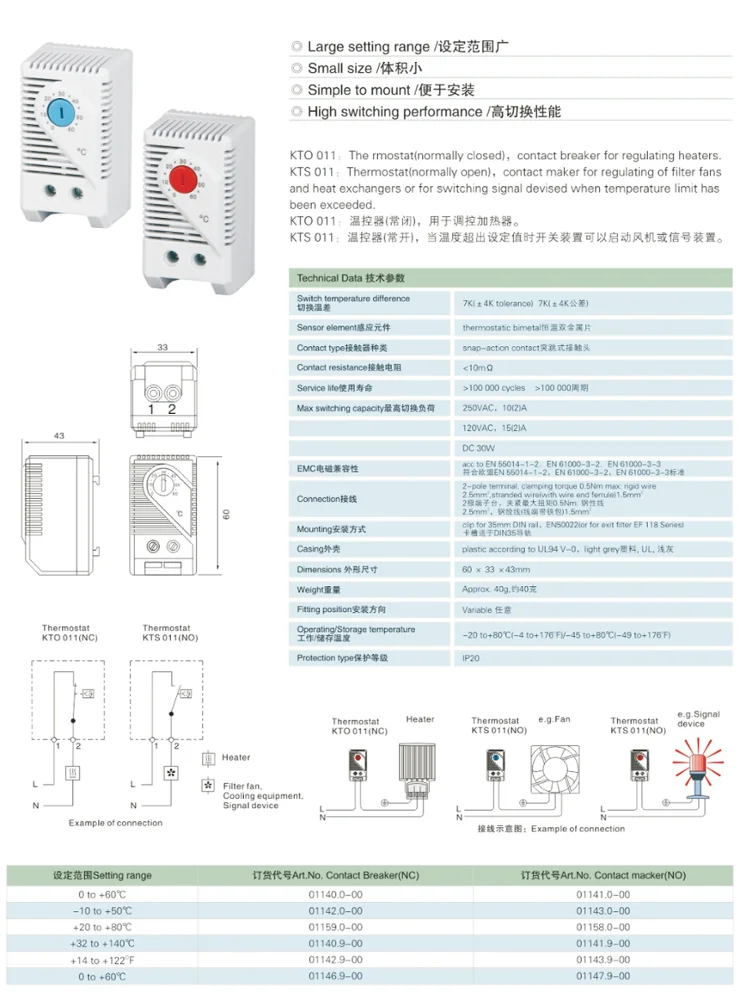

KTS011 CNGAD mechanical thermostat temperature controller

♦Large setting range

♦Small size

♦Simple to mount

♦High switching performance

KTO 011: The rmostatfnormally closed), contact breaker for regulating heaters. KTS 011: Thermostat(normally open), contact maker for regulating of filter fans and heat exchangers or for switching signal devised when temperature limit has been exceeded.

Technical Data

Switch temperature difference7K(±4K tolerance)
Sensor elementthermostatic bimetal
Contact typesnap-action contact
Contact resistance<10mΩ
Service>100 000 cycles
Max switching capacitygaty250VAC, 10(2)A
 120 VAC, 15(2)A
 DC 30W
EMCacc to EN 55014-1-2 EN 61000-3-2. EN 61000-3-3
Connection

2-pole terminal, clamping torque 0.5Nm max:

rigid wire 2.5mm²,

stranded wire(with wire end ferrule) 1.5mm²

Mounting

clip for 35mm DIN rail. EN50022

(or for exit filter EF 118 Series)

Casingplastic according to UL94 V-0
Dimensions60 x 33 x43mm
WeightsApprox. 40g
Fitting positionVariable

Operating/Storage temperature

-20 to+80°C(-4 to+176°F)/-45 to+80°C(-49 to+176°F)
Protection typeIP20
